GYX Rod Seals

Function and Usage
GYX Rod Seal is a lip seal which are designed with one main lip and one ancillary lip. When it is static, the sealing effect is played by the interference compression of the two sealing lips.When it is dynamic, the system pressure is applied at the valley of the Y type seal, which increased the contact stress of the seal lip, piston rod and groove bottom diameter, with the increase of pressure, the contact stress also increases correspondingly, which plays the role of dynamic sealing. A little of oil slick is arranged between the main and the ancillary lip, which effectively prevents the dry friction and the premature wear of the seal. The small cross section of GYX Rod Seal is easy to install, suitable for shallow groove installation of the sleeve.

Advantage
--Good sealing effect, wear resistance
--Good ability to adapt the changes of the pressure
--Impact resistance, anti extrusion
--Simple design, and easy to install

Material
Standard usage
Material: polyurethane  Our Material Code: P902
Back UP Material Code: T600

If the working condition is under high pressure, we suggest to use POM, Our Material Code: S805

Technical Data
The Standard GYX Rod Seal is suitable for heavy construction machinery and industrial hydraulic.
Working Pressure: ≤40MPa
Speed：≤0.5m/s
Working Temperature：-35℃ to +110℃
Working Medium: Hydraulic oil, emulsion, water

Clearance

Working Pressure /MPa		5	10	20	30	40
Maximum Clearance E	d＜60mm	0.40	0.30	0.20	0.15	0.10
	d≥60mm	0.50	0.40	0.30	0.20	0.15


Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

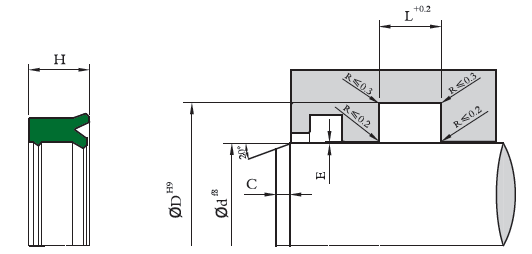

Installation
Groove: Both Closed and Opened (Open type groove is recommended for the limit diameter and limit cross section.)
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
GYX Rod Seal
Series No.: GYX    Piston Rod Diameter: d=100mm
Part Number: GYX100112P902
GYX: Series Number
100: Piston Rod Diameter
112: Groove Diameter
P902: Material Code


GYX Rod Seals
d	D	L	L1        (with back up)	H	C	Part No.	Back Up Part No.	Remarks
*8	14	9	10.5	8	4.5	GYX008014	DF8*14*1.5	○
*10	16	9	10.5	8	4.5	GYX010016	DF10*16*1.5	○
*12	18	9	10.5	8	4.5	GYX012018	DF12*18*1.5	○
*14	20	9	10.5	8	4.5	GYX014020	DF14*20*1.5	○
*16	22	9	10.5	8	4.5	GYX016022	DF16*22*1.5	●
*18	24	9	10.5	8	4.5	GYX018024	DF18*24*1.5	●
*20	26	9	10.5	8	4.5	GYX020026	DF20*26*1.5	●
*22	28	9	10.5	8	4.5	GYX022028	DF22*28*1.5	●
*25	31	9	10.5	8	4.5	GYX025031	DF25*31*1.5	●
28	34	9	10.5	8	4.5	GYX028034	DF28*34*1.5	●
30	38	11	12.5	10	5.5	GYX030038	DF30*38*1.5	●
32	40	11	12.5	10	5.5	GYX032040	DF32*40*1.5	●
35	43	11	12.5	10	5.5	GYX035043	DF35*43*1.5	●
36	44	11	12.5	10	5.5	GYX036044	DF36*44*1.5	●
40	48	11	12.5	10	5.5	GYX040048	DF40*48*1.5	●
45	53	11	12.5	10	5.5	GYX045053	DF45*53*1.5	●
50	58	11	12.5	10	5.5	GYX050058	DF50*58*1.5	●
55	63	11	12.5	10	5.5	GYX055063	DF55*63*1.5	●
56	64	11	12.5	10	5.5	GYX056064	DF56*64*1.5	●
60	72	15	17	14	6	GYX060072	DF60*72*2	●
63	75	15	17	14	6	GYX063075	DF63*75*2	●
65	77	15	17	14	6	GYX065077	DF65*77*2	○
70	82	15	17	14	6	GYX070082	DF70*82*2	●
75	87	15	17	14	6	GYX075087	DF75*87*2	○
80	92	15	17	14	6	GYX080092	DF80*92*2	●
85	97	15	17	14	6	GYX085097	DF85*97*2	●
90	102	15	17	14	6	GYX090102	DF90*102*2	●
95	107	15	17	14	6	GYX095107	DF95*107*2	●
100	112	15	17	14	6	GYX100112	DF100*112*2	●
105	117	15	17	14	6	GYX105117	DF105*117*2	○
110	122	15	17	14	6	GYX110122	DF110*122*2	●
120	132	15	17	14	6	GYX120132	DF120*132*2	●
125	137	15	17	14	6	GYX125137	DF125*137*2	●
130	142	15	17	14	6	GYX130142	DF130*142*2	●
140	152	15	17	14	6	GYX140152	DF140*152*2	●
150	162	15	17	14	6	GYX150162	DF150*162*2	●
160	172	15	17	14	6	GYX160172	DF160*172*2	●
170	186	19	21.5	18	6.5	GYX170186	DF170*186*2.5	●
180	196	19	21.5	18	6.5	GYX180196	DF180*196*2.5	●
190	206	19	21.5	18	6.5	GYX190206	DF190*206*2.5	●
200	216	19	21.5	18	6.5	GYX200216	DF200*216*2.5	●
210	226	19	21.5	18	6.5	GYX210226	DF210*226*2.5	●
220	236	19	21.5	18	6.5	GYX220236	DF220*236*2.5	●
230	246	19	21.5	18	6.5	GYX230246	DF230*246*2.5	●
260	276	19	21.5	18	6.5	GYX260276	DF260*276*2.5	●
250	266	19	21.5	18	6.5	GYX250266	DF250*266*2.5	○
240	256	19	21.5	18	6.5	GYX240256	DF240*256*2.5	●
270	286	19	21.5	18	6.5	GYX270286	DF270*286*2.5	●
280	296	19	21.5	18	6.5	GYX280296	DF280*296*2.5	●
300	316	19	21.5	18	6.5	GYX300316	DF300*316*2.5	●
320	344	25.5	29	24	8	GYX320344	DF320*344*3.5	●
360	384	25.5	29	24	8	GYX360384	DF360*384*3.5	○
380	404	25.5	29	24	8	GYX380404	DF380*404*3.5	○
400	424	25.5	29	24	10	GYX400424	DF400*424*3.5	○
420	444	25.5	29	24	10	GYX420444	DF420*444*3.5	○
440	464	25.5	29	24	10	GYX440464	DF440*464*3.5	○
450	474	25.5	29	24	10	GYX450474	DF450*474*3.5	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; 3. “*” we suggest to adopt split type groove. If any special requirements of the materials and sizes, please contact with us.
