GBA Rod Seals

Function and Usage
GBA Rod Seal is made of a nitrile rubber O ring and a high strength polyurethane sealing ring. The highly elastic O ring ensures the preload of the sealing lip at the low pressure e or at zero pressure. Sealing performance is influenced by the temperature is very small, even a certain wear of the seal, the preload can also be ensured. GBA Rod Seal is not sensitive to vibration load and peak pressure, and is suitable for harsh working conditions.

Advantage
--Not sensitivity to vibration load and peak pressure
--Good sealing effect under low temperature
--Impact resistance, suitable for harsh working conditions
-- Easy to install

Material
Standard usage
Sealing Body Material: polyurethane  Our Material Code: P902
O Ring Material:Nitrile Rubber (NBR)  Our Material Code: N800

Technical Data
The Standard GBA Rod Seal is mainly used for plunger, piston rod, cylinder, gas drilling, mufti-stage cylinder,  forging machine and the hydraulic equipment for walking equipment.
Working Pressure: ≤35MPa
Speed: ≤0.5m/s
Working Temperature：-35℃ to +110℃
Working Medium: Mineral hydraulic oil, emulsion, water and other media
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Both Closed and Opened (Open type groove is recommended for the limit diameter and limit cross section.)
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
GBA Rod Seal
Series No.: GBA    Piston Rod Diameter: d=100mm
Part Number: GBA100110P902
GBA: Series Number
100: Piston Rod Diameter
110: Groove Diameter
P902: Material Code

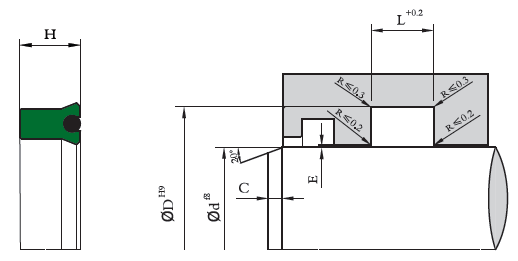

GBA Rod Seals
d	D	L	H	C	Part No.	Remarks
*20	28	6.3	5.7	4.5	GBA020028	○
*20	30	8	7.3	4.5	GBA020030	○
*22	30	6.3	5.7	4.5	GBA022030	○
*22	32	8	7.3	4.5	GBA022032	○
*25	33	6.3	5.7	4.5	GBA025033	○
*25	35	8	7.3	4.5	GBA025035	○
*30	40	8.3	7.5	4.5	GBA030040	○
32	42	8	7.3	4.5	GBA032042	○
35	45	8	7.3	4.5	GBA035045	○
40	50	8	7.3	4.5	GBA040050	○
40	55	12.5	11.4	5.5	GBA040055	○
45	55	8	7.3	4.5	GBA045055	○
45	60	12.5	11.4	5.5	GBA045060	○
50	60	8	7.3	4.5	GBA050060	○
50	65	12.5	11.4	5.5	GBA050065	○
55	65	8	7.3	4.5	GBA055065	●
55	70	12.1	11	5.5	GBA055070	○
60	70	8	7.3	4.5	GBA060070	○
60	75	14.9	13.5	5.5	GBA060075	○
65	80	12.5	11.4	5.5	GBA065080	●
70	80	12.5	11.4	5.5	GBA070080	●
70	82	10.5	9.5	4.5	GBA070082	●
70	85	12.5	11.4	5.5	GBA070085	●
75	90	12.5	11.4	5.5	GBA075090	○
80	88	7.2	6.5	4.5	GBA080088	●
80	92	9.9	9	4.5	GBA080092	●
80	95	12.5	11.4	5.5	GBA080095	○
85	95	12.5	11.4	5.5	GBA085095	●
85	105	16	14.5	6	GBA085105	○
90	100	12.5	11.4	5.5	GBA090100	●
90	105	12.5	11.4	5.5	GBA090105	●
95	105	12.5	11.4	5.5	GBA095105	●
95	110	12.5	11.4	5.5	GBA095110	○
100	108	7.2	6.5	4.5	GBA100108	●
100	110	12.5	11.4	5.5	GBA100110	●
100	115	12.1	11	5.5	GBA100115	●
100	120	16	14.5	6	GBA100120	○
105	120	12.5	11.4	5.5	GBA105120	○
105	125	16	14.5	6	GBA105125	○
110	120	10.5	9.5	4.5	GBA110120	●
110	125	12.5	11.4	5.5	GBA110125	○
110	130	16	14.5	6	GBA110130	○
115	130	12.5	11.4	5.5	GBA115130	○
120	135	12.5	11.4	5.5	GBA120135	○
120	140	16.5	15	6	GBA120140	○
125	135	12.5	11.4	5.5	GBA125135	●
125	140	12.5	11.4	5.5	GBA125140	○
125	145	16	14.5	6	GBA125145	○
130	145	16	14.5	6	GBA130145	○
135	155	16	14.5	6	GBA135155	○
140	150	12.5	11.4	5.5	GBA140150	○
140	152	16	14.5	6	GBA140152	●
140	160	16	14.5	6	GBA140160	○
145	155	12.5	11.4	5.5	GBA145155	○
145	165	16	14.5	6	GBA145165	○
150	160	12.5	11.4	5.5	GBA150160	○
150	170	16	14.5	6	GBA150170	○
155	175	16.5	15	6	GBA155175	○
160	180	16.5	15	6	GBA160180	○
160	185	20	18.2	6.5	GBA160185	○
165	190	20	18.2	6.5	GBA165190	○
170	190	16.5	15	6	GBA170190	○
170	195	21	19	6.5	GBA170195	○
180	200	16.5	15	6	GBA180200	○
180	205	20	18.2	6.5	GBA180205	○
200	220	16.5	15	6	GBA200220	○
200	225	20	18.2	6.5	GBA200225	○
210	230	16	14.5	6	GBA210230	○
220	240	16.5	15	6	GBA220240	○
240	260	16	14.5	6	GBA240260	○
250	280	25	22.7	8	GBA250280	○
280	310	25	22.7	8	GBA280310	○
290	320	25	22.7	8	GBA290320	○
300	330	25	22.7	8	GBA300330	○
360	390	25	22.7	8	GBA360390	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; 3. “*” we suggest to adopt split type groove. If any special requirements of the materials and sizes, please contact with us.
