GV Rod Seals

Function and Usage
GV Rod Seal is combined by a set of V type rubber fabric ring, supporting ring and pressure ring. Usually it is 1+5+1 (1: pressure ring, 5: three V type rubber fabric rings and two V type rubber ring, 1: supporting ring) or 1+3+1 (1: pressure ring, 3: two type rubber fabric rings and one V type rubber ring, 1: supporting ring). In this compression type seal, the axial force exerted by the system pressure is transferred between each V type ring and the pressure is pressed on the surface of the piston rod. Because there are a number of sealing lips, so the GV Rod Seal has excellent sealing performance, compared with the monomer seal, it is not sensitive to the slight damage of the surface and the dirt in the medium. By adjusting the groove device, the best coordination of friction and sealing performance can be achieved, and the service life of the component can be effectively prolonged.

Advantage
--Refer to the different media and temperature range, can adjusted by choosing different material
-- With the stable structure, the pressure peak is not sensitive
--As the contact area is long and there are several sealing lips, so there is an excellent sealing performance
--Easy to install and replace

Material
Supporting Ring and V Type Reinforced Fabric Ring Material: Nitrile Rubber + Cloth  Our Material Code: BN500
V Type Rubber Ring Material:Nitrile Rubber (NBR)   Our Material Code: N800
Pressure Ring:POM   Our Material Code: S801
Combination Code: BNSN

If the working condition is under high temperature or chemical resistant medium, we suggest to use FKM (Fluoro Rubber) for the V type ring, Our Material Code: F800, supporting Ring and V type rubber fabric ring we suggest to use Fabric FKM, Our Material Code: BF500. Pressure Ring we suggest to use PTFE, Our Material Code: T605. Combination Code: BFTF

Technical Data
The Standard GV Rod Seal is mainly used for plunger, piston rod of the press machine, cylinder, valve shaft and seal of valve spool.
Working Pressure: ≤60MPa
Speed: ≤0.5m/s
Working Temperature：-35℃ to +200℃ (Refer to the different material of the seal)
Working Medium: Mineral hydraulic oil, emulsion, water and other media
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

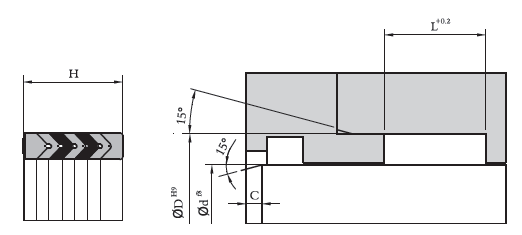

Installation
Groove: Opened
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. Each component should be installed one by one according to the order, apply grease to facilitate assembly.

Example of the Order Part No. :
GV Rod Seal
Series No.: GV    Piston Rod Diameter: d=100mm
Part Number: GV100115BNSN
GV: Series Number
100: Piston Rod Diameter
115: Groove Diameter
BNSN Material Code

GV Rod Seals
d	D	L	H	C	Part No.	Remarks
20	30	18.5	18.5	4	GV020030	●
20	32	22.5	22.5	4	GV020032	●
22	32	18.5	18.5	4	GV022032	●
22	34	22.5	22.5	4	GV022034	●
25	37	22.5	22.5	4	GV025037	●
25	40	22.5	22.5	5	GV025040	●
28	40	22.5	22.5	4	GV028040	●
28	43	22.5	22.5	5	GV028043	●
30	42	22.5	22.5	4	GV030042	●
30	45	22.5	22.5	5	GV030045	●
32	44	22.5	22.5	4	GV032044	●
32	47	22.5	22.5	5	GV032047	●
35	47	22.5	22.5	4	GV034047	●
35	50	22.5	22.5	5	GV035050	●
36	48	22.5	22.5	4	GV036048	●
36	51	22.5	22.5	5	GV036051	●
40	52	22.5	22.5	4	GV040052	●
40	55	22.5	22.5	5	GV040055	●
42	54	22.5	22.5	4	GV042054	●
42	57	22.5	22.5	8	GV042057	●
45	60	22.5	22.5	5	GV045060	●
45	65	27.5	27.5	8	GV045065	●
50	65	22.5	22.5	5	GV050065	●
50	70	30	30	8	GV050070	●
55	70	22.5	22.5	5	GV055070	●
55	75	30	30	8	GV055075	●
56	71	22.5	22.5	5	GV056071	●
56	76	37	37	8	GV056076	●
60	75	22.5	22.5	5	GV060075	●
60	80	37	37	8	GV060080	●
63	78	22.5	22.5	5	GV063078	●
63	83	37	37	8	GV063083	●
65	80	22.5	22.5	5	GV065080	●
65	85	40	40	8	GV065085	●
70	85	22.5	22.5	5	GV070085	●
70	90	40	40	8	GV070090	●
75	90	22.5	22.5	5	GV075090	●
75	95	40	40	8	GV075095	●
80	95	22.5	22.5	5	GV080095	●
80	100	40	40	8	GV085100	●
85	100	22.5	22.5	5	GV080100	●
85	105	40	40	8	GV085105	●
90	105	22.5	22.5	5	GV090105	●
90	110	40	40	8	GV090110	●
100	115	30	30	5	GV100115	●
100	120	40	40	8	GV100120	●
110	125	30	30	5	GV110125	●
110	130	40	40	8	GV110130	●
115	130	30	30	5	GV115130	●
115	140	46	46	8	GV115140	●
125	140	34	34	5	GV125140	●
125	150	46	46	8	GV125150	●
140	155	34	34	5	GV140155	●
140	165	46	46	8	GV140165	●
150	170	40	40	8	GV150170	●
150	180	60	60	10	GV150180	●
160	180	40	40	8	GV160180	●
160	190	60	60	10	GV160190	●
180	200	40	40	8	GV180200	●
180	210	60	60	10	GV180210	●
200	220	40	40	8	GV200220	●
200	230	60	60	10	GV200230	●
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals. If any special requirements of the materials and sizes, please contact with us.
