GYN Rod Seals

Function and Usage
GYN Rod Seal is a single action compact type lip seal. When it is static, the sealing effect is played by the interference compression of the two sealing lips.When it is dynamic, the system pressure is applied at the valley of the Y type seal, which increased the contact stress of the seal lip, piston rod and groove bottom diameter, with the increase of pressure, the contact stress also increases correspondingly, which plays the role of dynamic sealing. Since the GYN Rod Seal do not have an ancillary lip, while low pressure its friction is lower than the GY Rod Seal. GYN Rod Seal is mainly used in heavy load walking machine, piston rod and plunger which are under static pressure, and so on..

Advantage
--Good sealing effect, wear resistance
--Good ability to adapt the changes of the pressure
--Impact resistance, suitable for harsh conditions
--Simple design, and easy to install
--Standard components for standard mounting grooves

Material
Standard usage
Material: polyurethane  Our Material Code: P902
Back UP Material Code: T600

If the working condition is under high temperature, we suggest to use FKM, Our Material Code: F900

If the working condition is under high pressure, we suggest to use POM, Our Material Code: S805

Technical Data
Working Pressure: ≤40MPa
Speed：≤0.5m/s
Working Temperature：-35℃ to +110℃
Working Medium: Hydraulic oil, emulsion, water

Clearance

Working Pressure /MPa		5	10	20	30	40
Maximum Clearance E	d＜60mm	0.40	0.30	0.20	0.15	0.10
	d≥60mm	0.50	0.40	0.30	0.20	0.15


Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Both Closed and Opened (Open type groove is recommended for the limit diameter and limit cross section.)
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
GYN Rod Seal
Series No.: GYN    Piston Rod Diameter: d=100mm
Part Number: GYN100115P902
GYN: Series Number
100: Piston Rod Diameter
115: Groove Diameter
P902: Material Code


GYN Rod Seals
GYN Rod Seals (JIS Standard)

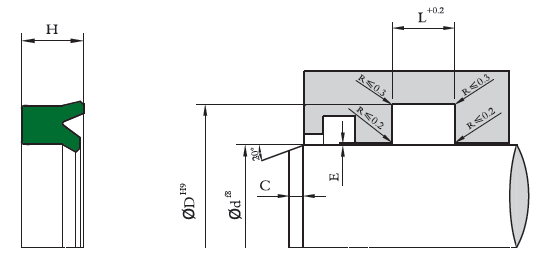

d	D	L	L1   (with back up)	H	C	Part No.	Back Up Part No.	Remarks
*15	24	5.7	7.7	5	2	GYN015024	DF15*24*2	●
*18	26	5.7	7.7	5	2	GYN018026	DF18*26*2	●
*20	28	5.7	7.7	5	2	GYN020028A	DF20*28*2	●
*22	30	5.7	7.7	5	2	GYN022030A	DF22*30*2	●
*25	33	5.7	7.7	5	2.5	GYN025033A	DF25*33*2	●
*28	36	5.7	8.7	5	2.5	GYN028036A	DF28*36*2	○
*30	40	7	10	6	2.5	GYN030040A	DF30*40*3	○
35	45	7	10	6	2.5	GYN035045A	DF35*45*3	●
40	50	7	10	6	2.5	GYN040050A	DF40*50*3	●
45	55	7	10	6	2.5	GYN045055A	DF45*55*3	●
50	60	7	10	6	2.5	GYN050060A	DF50*60*3	●
55	65	7	10	6	2.5	GYN055065A	DF55*65*3	●
60	70	7	10	6	2.5	GYN060070	DF60*70*3	●
63	73	7	10	6	2.5	GYN063073	DF63*73*3	●
65	75	7	10	6	2.5	GYN065075A	DF65*75*3	●
70	80	7	10	6	2.5	GYN070080A	DF70*80*3
75	85	7	10	6	2.5	GYN075085A	DF75*85*3	●
80	90	7	10	6	2.5	GYN080090A	DF80*90*3	●
85	100	10	13	9	4	GYN085100	DF85*100*3	●
90	105	10	13	9	4	GYN090105A	DF90*105*3	●
95	110	10	13	9	4	GYN095110	DF95*110*3	●
100	115	10	13	9	4	GYN100115A	DF100*115*3	●
105	120	10	13	9	4	GYN105120	DF105*120*3	●
110	125	10	13	9	4	GYN110125A	DF110*125*3	●
120	135	10	13	9	4	GYN120135A	DF120*135*3	●
125	140	10	13	9	4	GYN125140	DF125*140*3	●
130	145	10	13	9	4	GYN130145	DF130*145*3	●
140	155	10	13	9	4	GYN140155	DF140*155*3	●
145	160	10	13	9	4	GYN145160	DF145*160*3	○
150	165	10	13	9	4	GYN150165	DF150*165*3	●
155	170	10	14	9	4	GYN155170	DF155*170*4	○
160	175	10	14	9	4	GYN160175	DF160*175*4	●
165	180	10	14	9	4	GYN165180	DF165*180*4	○
170	185	10	14	9	4	GYN170185	DF170*185*4	●
175	190	10	14	9	4	GYN175190	DF175*190*4	○
180	200	13	17	12	5	GYN180200A	DF180*200*4	●
190	210	13	17	12	5	GYN190210	DF190*210*4	●
200	220	13	17	12	5	GYN200220	DF200*220*4	●
210	230	13	17	12	5	GYN210230	DF210*230*4	●
220	240	13	17	12	5	GYN220240	DF220*240*4	●
225	245	13	17	12	5	GYN225245	DF225*245*4	○
230	250	13	17	12	5	GYN230250A	DF230*250*4	○
240	260	13	17	12	5	GYN240260A	DF240*260*4	●
250	270	13	17	12	5	GYN250270	DF250*270*4	○
260	285	17	21	16	6.5	GYN260285	DF260*285*4	○
270	295	17	21	16	6.5	GYN270295	DF270*295*4	○
280	305	17	21	16	6.5	GYN280305	DF280*305*4	○
290	315	17	21	16	6.5	GYN290315	DF290*315*4	○
300	325	17	21	16	6.5	GYN300325	DF300*325*4	○
GYN Rod Seals (ISO Standard)
*14	22	6.3	8.3	5.7	4.5	GYN014022	DF14*22*2	●
*18	28	8	10	7.3	4.5	GYN018028	DF18*28*2	●
*20	28	6.3	8.3	5.7	4.5	GYN020028B	DF20*28*2	●
*20	30	8	10	7.3	4.5	GYN020030	DF20*30*2	●
*22	30	6.3	8.3	5.7	4.5	GYN022030B	DF22*30*2	●
*22	32	8	10	7.3	4.5	GYN022032	DF22*32*2	●
*25	33	6.3	8.3	5.7	4.5	GYN025033B	DF25*33*2	●
*25	33	7.3	9.3	6.5	4.5	GYN025033C	DF25*33*2	●
*25	35	8	10	7.3	4.5	GYN025035	DF25*35*2	●
*28	36	6.3	8.3	5.7	4.5	GYN028036B	DF28*36*2	●
*28	38	8	10	7.3	4.5	GYN028038	DF28*38*3	●
*30	38	6.3	8.3	5.7	4.5	GYN030038	DF30*38*2	●
*30	40	8	11	7.3	4.5	GYN030040B	DF30*40*3	●
32	42	8	11	7.3	4.5	GYN032042	DF32*42*3	●
35	45	8	11	7.3	4.5	GYN035045	DF35*45*3	●
36	46	8	11	7.3	4.5	GYN036046	DF36*46*3	●
38	48	8	11	7.3	4.5	GYN038048	DF38*48*3	●
40	50	8	11	7.3	4.5	GYN040050B	DF40*50*3	●
40	55	12.5	15.5	11.4	5.5	GYN040055	DF40*55*3	●
45	53	6.3	8.3	5.7	4.5	GYN045053	DF45*53*2	●
45	55	8	11	7.3	4.5	GYN045055B	DF45*55*3	●
45	60	12.5	15.5	11.4	5.5	GYN045060	DF45*60*3	●
50	60	8	11	7.3	4.5	GYN050060B	DF50*60*3	●
50	65	12.5	15.5	11.4	5.5	GYN050065	DF50*65*3	●
55	65	8	11	7.3	4.5	GYN055065B	DF55*65*3	●
55	70	12.5	15.5	11.4	5.5	GYN055070	DF55*70*3	●
56	66	7.5	10.5	6.5	4.5	GYN056066	DF56*66*3	●
56	71	12.5	15.5	11.4	5.5	GYN056071	DF56*71*3	●
60	75	12.5	15.5	11.4	5.5	GYN060075	DF60*75*3	●
63	78	12.5	15.5	11.4	5.5	GYN063078	DF63*78*3	●
65	75	8	11	7.3	4.5	GYN065075B	DF65*75*3	●
65	80	12.5	15.5	11.4	5.5	GYN065080	DF65*80*3	●
65	85	12.5	15.5	11.4	5.5	GYN065085	DF65*85*3	●
70	80	8	11	7.3	4.5	GYN070080B	DF70*80*3	●
70	85	12.5	15.5	11.4	5.5	GYN070085	DF70*85*3	●
75	85	8	11	7.3	4.5	GYN075085B	DF75*85*3	●
80	90	8	11	7.3	4.5	GYN080090B	DF80*90*3	●
80	95	12.5	15.5	11.4	5.5	GYN080095	DF80*95*3	●
90	100	7.5	11	6.5	4.5	GYN090100	DF90*100*3	●
90	105	12.5	15.5	11.4	5.5	GYN090105B	DF90*105*3	●
100	115	12.5	15.5	11.4	5.5	GYN100115B	DF100*115*3	●
100	120	16	19	14.5	6	GYN100120	DF100*120*3	●
105	125	16	19	14.5	6	GYN105125	DF105*125*3	●
110	125	10.6	13.6	9.6	5.5	GYN110125B	DF110*125*3	●
110	130	16	19	14.5	6	GYN110130	DF110*130*3	●
120	135	16	19	14.5	6	GYN120135B	DF120*135*3	●
120	140	16	19	14.5	6	GYN120140	DF120*140*3	●
125	145	16	19	14.5	6	GYN125145	DF125*145*3	●
130	150	16	19	14.5	6	GYN130150	DF130*150*3	●
135	150	16	19	14.5	6	GYN135150	DF135*150*3	●
140	160	16	19	14.5	6	GYN140160	DF140*160*3	●
145	165	16	19	14.5	6	GYN145165	DF145*165*3	○
150	170	16	19	14.5	6	GYN150170	DF150*170*3	●
160	180	16	20	14.5	6	GYN160180	DF160*180*4	●
160	185	20	24	18.2	6.5	GYN160185	DF160*185*4	●
170	195	20	24	18.2	6.5	GYN170195	DF170*195*4	○
180	200	16	20	14.5	6	GYN180200B	DF180*200*4	●
180	205	20	24	18.2	6.5	GYN180205	DF180*205*4	●
200	225	20	24	18.2	6.5	GYN200225	DF200*225*4	●
220	250	25	29	22.7	8	GYN220250	DF220*250*4	●
225	250	20	24	18.2	6.5	GYN225250	DF225*250*4	○
230	250	16	20	14.5	6	GYN230250B	DF230*250*4	●
230	260	25	29	22.7	8	GYN230260	DF230*260*4	●
240	260	16	20	14.5	6	GYN240260B	DF240*260*4	●
250	280	25	29	22.7	8	GYN250280	DF250*280*4	○
270	300	25	29	22.7	8	GYN270300	DF270*300*4	●
280	300	16	20	14.5	6	GYN280300	D280F*300*4	●
280	310	25	29	22.7	8	GYN280310	DF280*310*4	●
320	360	32	36	30	8	GYN320360	DF320*360*4	○
360	400	32	36	30	8	GYN360400	DF360*400*4	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; 3. “*” we suggest to adopt split type groove. If any special requirements of the materials and sizes, please contact with us.
