JM & YL Type Static Guide Elements
JM & YL Type Static Guide Elements
Static Seals JM / YL are seals which are used for instead of the O Ring assembled with Retaining Ring.
It can bear high pressure, and anti tearing, suitable for big radial gap of the seals.
Application:
Working Pressure:P≤70MPa
Working Temperature:-30℃~100℃
Medium: HFA

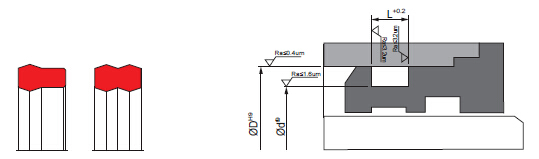

Used for the seals which are located between the guide sleeve of the hydro-cylinder and cylinder tube.
Installation:
Could be installed in the whole guide sleeve, during the installation, please avoid the shape edge.
Material:
The seals were made by special PU which is anti-hydrolysis. If any special requirement (Such as pressure,
temperature, and groove sizes, and etc.), please contact with us.
D |
d |
L |
Part No. |
65 |
57 |
8.2 |
JM/YL065057 |
70 |
62 |
8.2 |
JM/YL070062 |
80 |
72 |
8.2 |
JM/YL080072 |
85 |
77 |
8.2 |
JM/YL085077 |
90 |
82 |
8.2 |
JM/YL090082 |
92 |
84 |
8.2 |
JM/YL092084 |
100 |
92 |
8.2 |
JM/YL100092 |
126 |
118 |
8.2 |
JM/YL126118 |
140 |
132 |
8.2 |
JM/YL140132 |
142 |
134 |
8.2 |
JM/YL142134 |
150 |
142 |
8.2 |
JM/YL150142 |
155 |
147 |
8.2 |
JM/YL155147 |
162 |
154 |
8.2 |
JM/YL162154 |
167 |
159 |
8.2 |
JM/YL167159 |
180 |
172 |
8.2 |
JM/YL180172 |
180 |
170 |
9.6 |
JM/YL180170 |
182 |
174 |
8.2 |
JM/YL182174 |
190 |
182 |
8.2 |
JM/YL190182 |
190 |
180 |
9.6 |
JM/YL190180 |
195 |
185 |
9.6 |
JM/YL195185 |
200 |
192 |
8.2 |
JM/YL200192 |
200 |
190 |
9.6 |
JM/YL200190 |
210 |
202 |
8.2 |
JM/YL210202 |
215 |
203 |
13 |
JM/YL215203 |
230 |
218.8 |
11.2 |
JM/YL230218 |
240 |
228.8 |
11.2 |
JM/YL240228 |
240 |
228 |
13 |
JM/YL240228A |
242 |
230.8 |
11.2 |
JM/YL242230 |
253 |
241.8 |
11.2 |
JM/YL253241 |
260 |
248.8 |
11.2 |
JM/YL260248 |
265 |
253.8 |
11.2 |
JM/YL265253 |
265 |
253 |
13 |
JM/YL265253A |
275 |
263.8 |
11.2 |
JM/YL275263 |
280 |
268 |
13 |
JM/YL280268 |
286 |
274.8 |
11.2 |
JM/YL286274 |
290 |
278.8 |
11.2 |
JM/YL290278 |
290 |
278 |
13 |
JM/YL290278A |
295 |
283 |
13 |
JM/YL295283 |
300 |
288.8 |
11.2 |
JM/YL300288 |
300 |
288 |
13 |
JM/YL300288A |
310 |
298.8 |
11.2 |
JM/YL310298 |
310 |
298 |
13 |
JM/YL310298A |
320 |
308.8 |
11.2 |
JM/YL320308 |
330 |
318.8 |
11.2 |
JM/YL330318 |
330 |
318 |
13 |
JM/YL330318A |
340 |
328.8 |
11.2 |
JM/YL340328 |
360 |
348.8 |
11.2 |
JM/YL360348 |
370 |
358.8 |
11.2 |
JM/YL370358 |
380 |
368.8 |
11.2 |
JM/YL380368 |
385 |
371.4 |
15 |
JM/YL385371 |
395 |
381.4 |
15 |
JM/YL395381 |
400 |
386.4 |
15 |
JM/YL400386 |
405 |
391.4 |
15 |
JM/YL405391 |
415 |
403 |
15 |
JM/YL415403 |
425 |
411.4 |
15 |
JM/YL425411 |
430 |
416.4 |
15 |
JM/YL430416 |
450 |
436.4 |
15 |
JM/YL450436 |
If any special requriement, please contact with us. |
