YL Static Seals

Function and Usage
In the design of the hydraulic cylinder, an O ring or an O Ring combined with a Back Up Ring are always used as a static seal. But during assembling or actual using, the O Ring maybe twisted or overturned. When the pressure pulse of the system is on the O Ring, or the fit clearance is too large, the O Ring may be sheared and extrusive, the sealing performance will be failed. The YL Static Seal is perfect designed as a seal to instead of  O Ring or O Ring and Back Up Ring combination. The YL Static Seal is made of polyurethane, it is resistant to extrusion, tear-proof, and also with perfect sealing effect. It is widely used in hydraulic cylinder as the static seal.

Advantage
--Easy to install
-- Long service life
--Good sealing effect
--Compression deformation is small

Material
Material: Polyurethane   Our Material Code: P902

If the working condition is under low temperature, we suggest to use low temperature resistance Polyurethane, Our Material Code: PV902

Technical Data
Working Pressure: ≤40MPa
Working Temperature：-35℃ to +110℃
Working Medium: Mineral hydraulic oil, emulsion, water and other media

Installation

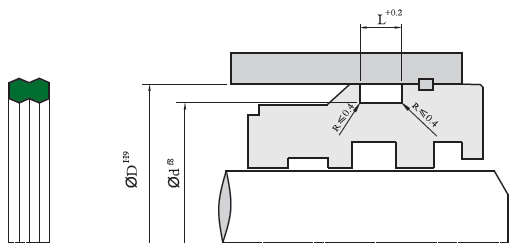

Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
YL Static Seal
Series No.: YL   Cylinder Bore Diameter: d=100mm
Part Number: YL100090P902
YL: Series Number
100: Cylinder Bore Diameter
090: Groove Diameter
P902: Material Code

YL Static Seal
D	d	L	Part No.	Remarks
20	16	5.8	YL020016	○
20	16.6	4.4	YL020016A	○
20	16.6	3.6	YL020016B	○
20	17.6	3.6	YL020017A	○
20.5	17.2	5	YL020017B	○
21	17.6	4.4	YL021017	●
21	18.6	3.6	YL021018A	○
21.5	18.1	4.4	YL021018B	○
21.5	19.1	2.6	YL021019	○
22	17.5	3.5	YL022017	●
23	19.6	4.4	YL023019	○
23	20.6	3.6	YL023020	○
24	20	4.8	YL024020	○
24	21.6	3.6	YL024021	○
26	21.2	4	YL026021	●
26.8	22	5.4	YL026022	○
28	23.8	5.3	YL028023	○
28.6	25.6	3.6	YL028025	○
30	25.1	4.4	YL030025A	○
30	25.4	5.4	YL030025B	○
31	26.4	5.4	YL031026	○
32	27.4	5.4	YL032027	○
33	20	5.6	YL033020	○
34	28.4	5.3	YL034028	○
34	31.1	3.6	YL034021	○
35	30.4	5	YL035030A	○
35.5	30.9	5	YL035030B	○
36	32	6.2	YL036032	○
38	32.4	5.3	YL038032	○
40	35.2	5.4	YL040035A	●
40	35.4	5.4	YL040035B	○
42.8	38	6.8	YL042038	○
43.4	37.8	6.2	YL043037	○
45	35.8	9.7	YL045035	○
45	40	5.4	YL045040	●
50	40.8	9.7	YL050040	○
50	43.8	5.6	YL050043	●
50	44.5	4.2	YL050044	●
50	45.5	5.5	YL050045	●
55	50	6.7	YL055050	●
55	50	4	YL055050A	●
55	49.36	5.8	YL055049	●
60	54.4	5.8	YL060054	●
63	56.6	6.4	YL063056	●
63	57.52	5.8	YL063057	●
68.2	60	7.1	YL068060	●
70	65	5	YL070065	●
70	64.5	4.8	YL070064	●
70	65.3	5.5	YL070065A	●
75	69.4	5.3	YL075069	●
80	70.8	9	YL080070	●
80	75.2	5.5	YL080075	●
80	75	4	YL080075A	●
80	74.32	5	YL080074	●
80	73.8	5	YL080073	●
90	81.4	9	YL090081	●
90	83.8	5	YL090083	●
90	84	5.8	YL090084	○
90	84.52	4.8	YL090084A	●
100	90.6	7	YL100090	●
100	91.4	9	YL100091	●
100	91	7.5	YL100091A	●
100	93.8	5	YL100093	●
100	94.32	5	YL100094	●
100	94.6	4.5	YL100094A	●
110	101.62	7	YL110101	●
110	101.4	9	YL110101A	●
110	101	7.5	YL110101B	●
115	108.6	8	YL115108	●
115	110.2	4	YL115110	●
120	110	6	YL120110	●
125	116.4	9	YL125116	●
125	116.6	7.1	YL125116A	●
130	124.52	6.2	YL130124	●
130	121	7.5	YL130121	●
135	126.62	7.1	YL135126	●
140	130.8	9.7	YL140130	●
150	141.6	8.6	YL150141	●
150	145.2	5.6	YL150145	●
156	147.62	7.1	YL156147	●
158	149.6	7.1	YL158149	●
160	150	8	YL160150	○
160	151	7.5	YL160151	●
165	156.3	7.2	YL165156A	●
165	156	7.5	YL165156B	●
166	157.62	7.1	YL166157	●
170	161	7.5	YL170161	○
176	166	8.4	YL176166	○
180	171	7.5	YL180171	●
180	168.4	7.3	YL180168	●
181	172	8.6	YL181172	○
186	177.7	9	YL186177	●
186	177.6	7.1	YL186177A	●
200	188.4	12.3	YL200188	●
200	191	7.5	YL200191	●
201	192.4	9	YL201192	○
210	201	7.5	YL210201	●
216	206	8.6	YL216206	○
265	254.5	11	YL265254	●
280	266	11	YL280266	●
300	286	11	YL300286	○
320	306	11	YL320306	●
360	346	11	YL360346	●
380	366	11	YL380366	●
400	386	11	YL400386	●
420	406	11	YL420406	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals. If any special requirements of the materials and sizes, please contact with us.
