QY Static Seals

Function and Usage
QY Static Seal’s sealing effect is played by the interference compression of the two sealing lips. During work, the system pressure is applied at the valley of the QY type seal, which increased the contact stress of the seal lip, cylinder and groove bottom diameter, with the increase of pressure, the contact stress also increases correspondingly, which plays the role of dynamic sealing. Compared with the form of an O Ring combine together with a Back Up Ring, or other compact type static seals, the QY Static Seal are good at resistance to extrusion and easy to install.

Advantage
-- Long service life
--Good sealing effect, anti extrusion
--Simple structure, easy to install

Material
Material: Polyurethane   Our Material Code: P902

Technical Data
Working Pressure: ≤40MPa
Working Temperature：-35℃ to +110℃
Working Medium: Mineral hydraulic oil
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation

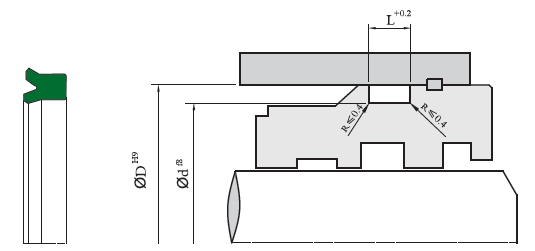

Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
QY Static Seal
Series No.: QY   Cylinder Bore Diameter: d=200mm
Part Number: QY200185P902
QY: Series Number
200: Cylinder Bore Diameter
185: Groove Diameter
P902: Material Code

QY Static Seal
D	d	L	C	Part No.
180	165	11	8	QY180165
190	175	11	8	QY190175
200	185	11	8	QY200185
210	195	11	8	QY210195
220	205	11	8	QY220205
230	215	11	8	QY230215
240	225	11	8	QY240225
250	235	11	10	QY250235
260	245	11	10	QY260245
280	265	11	10	QY280265
290	275	11	10	QY290275
300	285	11	10	QY300285
320	305	11	10	QY320305
330	315	11	10	QY330315
350	335	11	10	QY350335
360	345	11	10	QY360345
370	355	11	10	QY370355
380	365	11	10	QY380365
390	375	11	10	QY390375
400	385	11	10	QY400385
420	405	11	10	QY420405
450	435	11	10	QY450435
480	465	11	10	QY480465
500	485	11	10	QY500485
If any special requirements of the materials and sizes, please contact with us.
