DL Static Joint Seals

Function and Usage
DL Static Joint Seal is made of nitrile rubber, it is suitable for hydraulic fluid threaded port and screw end, specifications are meet the standard size of the joint.

Advantage
-- Mechanical deformation of the section is small
-- Good sealing effect
--  No twist in the groove.
--  Stable dimension

Material
Material:Nitrile Rubber (NBR)   Our Material Code: N900
If the working condition is under high temperature, we suggest to use FKM (Fluoro Rubber), Our Material Code: F800

Technical Data
Standard Static Joint Seal, suitable for hydraulic fluid threaded port , screw end, and etc.
Working Pressure: ≤60MPa
Working Temperature：-30℃ to +120℃
Working Medium: Mineral hydraulic oil, emulsion, water and other media

Installation
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed. The performance and reliability of the work are related to the assembly technology used.

Example of the Order Part No. :
DL Static Joint Seal
Joint Seal Series No.: DL
Screw Thread Diameter: M=20*1.5
Part Number: DL023017N900
DL: Series Number
023: Outer Diameter
017: Inner Diameter
N900: Material Code

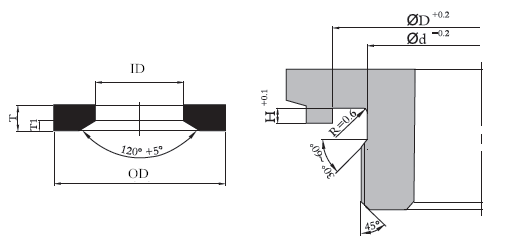

DL Static Joint Seal
Size	Screw Thread (Metric)	Screw Thread    (British Unit)	ID	T	D	d	H	Part No.
10	M10×1	G 1/8A	8.4	1	12	8.3	0.7	DL012008
12	M12×1.5		9.8	1.5	14.5	9.7	1.2	DL014009
14	M14×1.5	G 1/4A	11.6	1.5	16.6	11.2	1.2	DL016011
16	M16×1.5		13.8	1.5	19	13.7	1.2	DL019013
17		G 3/8A	14.7	1.5	19	14.7	1.2	DL019014
18	M18×1.5		15.7	1.5	21	15.7	1.2	DL021015
20	M20×1.5		17.8	1.5	23	17.7	1.2	DL023017
21		G 1/2A	18.5	1.5	24	18.4	1.2	DL024018
22	M22×1.5		19.6	1.5	24.6	19.7	1.2	DL024019
27	M26×1.5	G 3/4A	23.9	1.5	29.3	23.8	1.2	DL029023A
27	M27×2	G 3/4A	23.9	2	29.3	23.8	1.2	DL029023B
33	M33×2	G 1A	29.7	2	36	29.6	1.6	DL036029
42	M42×2	G 1 1/4A	38.8	2	46	38.6	1.6	DL046038
48	M48×2	G 1 1/2A	44.7	2	51	44.5	1.6	DL051044
