KDF Combination Seals

Function and Usage
KDF Combination Seal is composed of a polyurethane slip ring and a square rubber ring. With the high hardness, the polyurethane slip ring can not be extruded when system pressure is increasing, and also, the friction coefficient is small. There is a concave structure on the sealing surface to form a lubricating oil cavity, reduce the friction resistance during the movement; The square rubber ring provides preload, compensate to the wear of the slip ring. Rubber elastomer transmission pressure sensitive, with good dynamic and static sealing effect. KDF Combination Seal is widely used crane hoist brake sealing system.

Advantage
--Wear resistance, long service life
-- Good sealing effect
--Simple trench, easy to install
--With a lubrication chamber

Material
Slip Ring Material: Polyurethane   Our Material Code: P903
Elastomer Material: Nitrile Rubber (NBR)   Our Material Code: N800
Combination Code: P903N

If the working condition is under low temperature, we suggest to use low temperature resistance Nitrile Rubber (NBR) for the elestomer , Our Material Code: NV705, Combination Code: P903NV

Technical Data
Working Pressure: ≤25MPa
Speed: ≤0.5m/s
Working Temperature: Nitrile Rubber (NBR)   -35℃ to +120℃
                   Polyurethane   -35℃ to +110℃
Working Medium: Hydraulic oil.
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. The sharp edges and burr in the installation area of the seal must be removed.

Example of the Order Part No. :
KDF Combination Seal
Series No.:KDF  Cylinder Diameter: d=100mm
Part Number: KDF100089P903N
KDF : Series Number
100: Cylinder Diameter
089: Groove Diameter
P903N: Material Code

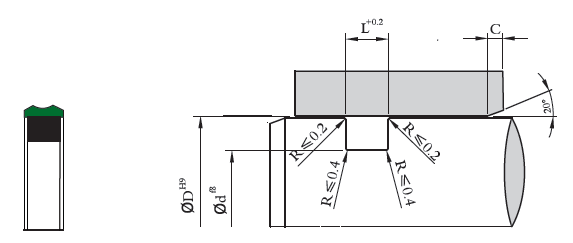

KDF Combination Seal
D	d	L	C	Part No.
87.5	76.5	6	8	KDF087076
100	89	6	8	KDF100089
103	92	6	8	KDF103092
112	101	6	8	KDF112101
131	120	6	8	KDF131120
136	126	6	8	KDF136126
138	127	6	8	KDF138127
140	130	6	8	KDF140130
147	137	6	8	KDF147137
150	140	6	10	KDF150140
150	139	6	10	KDF150139
158	147	6	10	KDF158147
165	154	6	10	KDF165154
180	169	6	10	KDF180169
If any special requirements of the materials and sizes, please contact with us.
