FA Wipers (Dust Seals)

Function and Usage
Fa wiper (dust seal) is a single action seal which are mounted in the cylinder guide sleeve, during the reciprocating movement of the piston rod , the FA wiper helps to prevent dust, sand and other impurities get into the cylinder, and also, avoiding the fuel tank seals, guide rings and other sealing elements to be broken.

Advantage
--Saving installation space
- Universal usage
--Simple groove design, easy to processing
--Easy installation and removal

Material
Standard usage
Material: polyurethane  Our Material Code: P903
If the working condition is under high temperature and Chemical resistant medium, we suggest to use FKM (fluororubber) , Our Material Code: F900

Technical Data
The standard FA wiper is applies to the axial control lever, trunk piston and the piston rod of the hydraulic cylinder and Pneumatic cylinder.
Reciprocating speed：≤1m/s
Working Temperature：-30℃ to +110℃
Working Medium: Hydraulic oil, emulsion, water
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

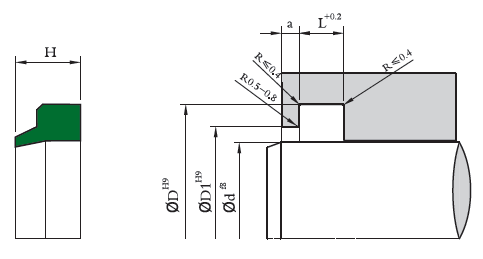

Installation
Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. To easily remove the dirt, It is also better for the wiper exposed from the shell body.

Example of the Order Part No. :
FA Wiper
Series No.: FA    Piston Rod Diameter: d=100mm
Part Number: FA100112P903
FA: Series Number
100: Piston Rod Diameter
112: Groove Diameter
P903: Material Code



FA Wipers (Dust Seals)
d	D	D1	L	H	a	Part No.	Remarks
14	22.6	16	5.3	7	2	FA014022	●
16	24.6	18	5.3	7	2	FA016024	●
18	26.6	20	5.3	7	2	FA018026	●
20	28.6	23	5.3	7	2	FA020028	●
22	30.6	25	5.3	7	2	FA022030	●
25	33.6	28	5.3	7	2	FA025033	●
28	36.6	31	5.3	7	2	FA028036	●
30	38.6	33	5.3	7	2	FA030038	●
32	40.6	35	5.3	7	2	FA032040	●
35	43.6	38	5.3	7	2	FA035043	●
36	44.6	39	5.3	7	2	FA036044	●
40	48.6	43	5.3	7	2	FA040048	●
42	50.6	45	5.3	7	2	FA042050	○
45	55.6	48	5.3	7	2	FA045055	●
50	60.6	53	5.3	7	2	FA050060	●
55	65.6	58	5.3	7	2	FA055065	●
56	66.6	59	5.3	7	2	FA056066	●
60	70.6	63	5.3	7	2	FA060070	●
63	73.6	66	5.3	7	2	FA063073	●
65	75.6	68	5.3	7	2	FA065075	●
70	80.6	73	5.3	7	2	FA070080	●
75	87.2	81	7.2	12	2	FA075087	●
80	92.2	86	7.2	12	5	FA080092	●
80	88.6	83	5.3	7	2	FA080088	●
85	97.2	91	7.2	12	5	FA085097	●
*90	102.2	96	7.2	12	5	FA090102	●
95	103.6	98	5.3	7	2	FA095103	●
95	107.2	101	7.2	12	5	FA095107	●
100	112.2	106	7.2	12	5	FA100112	●
105	117.2	111	7.2	12	5	FA105117	●
110	122.2	116	7.2	12	5	FA110122	●
115	127.2	121	7.2	12	5	FA115127	●
*120	132.2	126	7.2	12	5	FA120132	●
125	140	132.6	10.2	16	6	FA125140	●
130	142.2	136	7.2	12	5	FA130142	●
140	155	147.6	10.2	16	6	FA140155	●
*150	165	157.6	10.2	16	6	FA150165	●
160	175	167.6	10.2	16	6	FA160175	●
170	185	177.6	10.2	16	6	FA170185	●
*180	200	190	10.2	18	8	FA180200	●
190	210	200	10.2	18	8	FA190210	●
200	220	210	10.2	18	8	FA200220	●
210	230	220	10.2	18	8	FA210230	●
220	240	230	10.2	18	8	FA220240	●
230	250	240	10.2	18	8	FA230250	●
235	255	245	10.2	18	8	FA235255	○
240	260	250	10.2	18	8	FA240260	●
250	270	260	10.2	18	8	FA250270	●
*260	280	270	10.2	18	8	FA260280	●
270	290	280	10.2	18	8	FA270290	○
280	300	290	10.2	18	8	FA280300	●
290	310	300	10.2	18	8	FA290310	○
300	320	310	10.2	18	8	FA300320	●
320	340	330	10.2	18	8	FA320340	●
330	350	340	10.2	18	8	FA330350	○
340	360	350	10.2	18	8	FA340360	●
350	370	360	10.2	18	8	FA350370	○
360	380	370	10.2	18	8	FA360380	○
370	390	380	10.2	18	8	FA370390	○
380	400	390	10.2	18	8	FA380400	○
400	420	410	10.2	18	8	FA400420	○
420	440	430	10.2	18	8	FA420440	○
440	460	450	10.2	18	8	FA440460	○
450	470	460	10.2	18	8	FA450470	○
480	500	490	10.2	18	8	FA480500	○
500	520	510	10.2	18	8	FA500520	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; 3. Part Number with a ” *” means both waterproof and dustproof type seals can be offered. If any special requirements of the materials and sizes, please contact with us.
