FE Wipers (Dust Seals)

Function and Usage
FE wiper (dust seal) is a single action TUP seal, during the reciprocating movement of the piston rod , the FE wiper helps to prevent dust, sand and other impurities get into the cylinder, and also, avoiding the fuel tank seals, guide rings and other sealing elements to be broken., prolong the service life of the seal. At the same time can effectively prevent dirt through the back of the dust ring to invade the sealing system.

Advantage
--Simple groove design,
--Good effect of dust, wear-resistant
--No twisting in the groove
--Easy installation

Material
Standard usage
Material: polyurethane  Our Material Code: P903

Technical Data
The Standard FE Wiper is suitable for the axial control rod, plunger, and piston rod of the hydraulic and pneumatic cylinders.
Reciprocating speed：≤1m/s
Working Temperature：-30℃ to +110℃
Working Medium: Hydraulic oil, emulsion, water
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

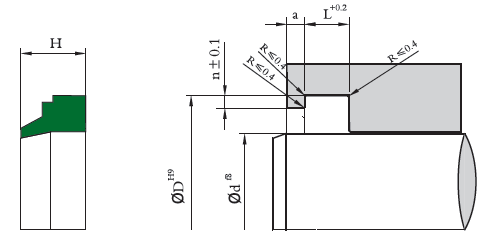

Installation
Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. To easily remove the dirt, It is also better for the wiper exposed from the shell body.

Example of the Order Part No. :
FE Wiper
Series No.: FE    Piston Rod Diameter: d=100mm
Part Number: FE100108P903
FE: Series Number
100: Piston Rod Diameter
108: Groove Diameter
P903: Material Code


FE Wipers (Dust Seals)
d	D	L	H	n	a	Part No.	Remarks
10	16	2.6	5	1	1	FE010016	○
10	18	4	7	1	1	FE010018	○
12	18	2.6	5	1	1	FE012018	○
12	20	4	7	1	1	FE012020	○
14	20	3.1	5	1	1	FE014020	●
14	22	4	7	1	1	FE014022	○
15	23	4	7	1	1	FE015023	○
16	22	3.1	5	1	1	FE016022	○
16	24	4	7	1	1	FE016024	○
17	25	4	7	1	1	FE017025	○
18	24	3.1	5	1	1	FE018024	○
18	26	4	7	1	1	FE018026	○
20	26	3.1	5	1	1	FE020026	○
20	28	4	7	1	1	FE020028	○
22	30	4	7	1	1	FE022030	●
23	31	4	7	1	1	FE023031	○
24	32	4	7	1	1	FE024032	○
25	33	4	7	1	1	FE025033	●
26	34	4	7	1	1	FE026034	○
28	36	4	7	1	1	FE028036	●
30	36	4	7	1	1	FE030036	○
30	38	4	7	1	1	FE030038	●
32	40	4	7	1	1	FE032040	○
33	41	4	7	1	1	FE033041	○
34	42	4	7	1	1	FE034042	○
35	43	4	7	1	1	FE035043	●
36	44	4	7	1	1	FE036044	○
38	46	4	7	1	1	FE038046	○
40	48	4	7	1	1	FE040048	●
42	50	4	7	1	1	FE042050	○
44	52	4	7	1	1	FE044052	○
45	53	4	7	1	1	FE045053	●
46	54	4	7	1	1	FE046054	○
47	55	4	7	1	1	FE047055	○
48	56	4	7	1	1	FE048056	○
50	58	4	7	1	1	FE050058	●
50	62	5.5	10	1.5	1.5	FE050062	○
51	59	4	7	1	1	FE051059	○
52	60	4	7	1	1	FE052060	○
54	62	4	7	1	1	FE054062	○
55	63	4	7	1	1	FE055063	●
56	64	4	7	1	1	FE056064	○
57	65	4	7	1	1	FE057065	○
58	66	4	7	1	1	FE058066	○
60	68	4	7	1	1	FE060068	●
60	72	5.5	10	1.5	1.5	FE060072	○
62	70	4	7	1	1	FE062070	○
63	71	4	7	1	1	FE063071	●
64	72	4	7	1	1	FE064072	○
65	73	4	7	1	1	FE065073	○
66	74	4	7	1	1	FE066074	○
67	75	4	7	1	1	FE067075	○
70	78	4	7	1	1	FE070078	●
75	83	4	7	1	1	FE075083	○
80	88	4	7	1	1	FE080088	●
85	93	4	7	1	1	FE085093	○
90	98	4	7	1	1	FE090098	●
95	103	4	7	1	1	FE095103	○
100	108	4	7	1	1	FE100108	●
110	122	5.5	10	1.5	1.5	FE110122	●
115	127	5.5	10	1.5	1.5	FE115127	○
120	132	5.5	10	1.5	1.5	FE120132	○
125	137	5.5	10	1.5	1.5	FE125137	●
130	142	5.5	10	1.5	1.5	FE130142	●
135	147	5.5	10	1.5	1.5	FE135147	○
140	152	5.5	10	1.5	1.5	FE140152	●
145	157	5.5	10	1.5	1.5	FE145157	○
150	162	5.5	10	1.5	1.5	FE150162	●
160	172	5.5	10	1.5	1.5	FE160172	●
165	177	5.5	10	1.5	1.5	FE165177	○
170	182	5.5	10	1.5	1.5	FE170182	○
180	192	5.5	10	1.5	1.5	FE180192	●
185	197	5.5	10	1.5	1.5	FE185197	○
190	202	5.5	10	1.5	1.5	FE190202	●
195	207	5.5	10	1.5	1.5	FE195207	○
200	212	5.5	10	1.5	1.5	FE200212	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; If any special requirements of the materials and sizes, please contact with us.
