FK Wipers (Dust Seals)

Function and Usage
FK wiper (dust seal) is a TUP seal with double lips. During the static and reciprocating movement of the piston rod , the special design of the dust proof lip of the FK wiper helps to prevent dust, sand and other impurities get into the cylinder, and also, avoiding the fuel tank seals, guide rings and other sealing elements to be broken., prolong the service life of the seal. The sealing lip which be directed at the media effects the sealing under lower pressure, and also, reduce the oil slick. Using together with the GS Type ladder seal will makes the sealing function more perfect.

Advantage
--Good effect of dust scarping
--Can keep the rest of oil slick
--Large section design, good stability in the groove
--Wear resistant and long life

Material
Standard usage
Material: polyurethane  Our Material Code: P903

Technical Data
The Standard FK Wiper is suitable for the axial control rod, plunger, and piston rod of the hydraulic and pneumatic cylinders.
Reciprocating speed：≤1m/s
Working Temperature：-30℃ to +110℃
Working Medium: Hydraulic oil, emulsion, water
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation

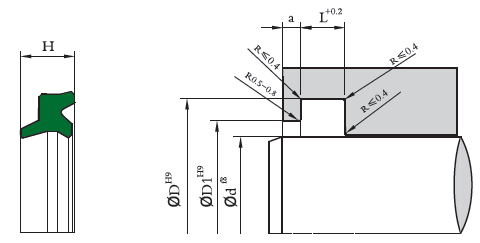

Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. To easily remove the dirt, It is also better for the wiper exposed from the shell body.

Example of the Order Part No. :
FK Wiper
Series No.: FK    Piston Rod Diameter: d=100mm
Part Number: FK100113P903
FK: Series Number
100: Piston Rod Diameter
113: Groove Diameter
P903: Material Code

FK Wipers (Dust Seals)
d	D	D1	L	H	a	Part No.	Remarks
18	29.8	22	5	8	3	FK018029	●
20	31.8	24	5	8	3	FK020031	●
22	33.8	26	5	8	3	FK022033	●
25	36.8	29	5	8	3	FK025036	●
28	39.8	32	5	8	3	FK028039	●
30	41.8	34	5	8	3	FK030041	●
32	43.8	37	5	8	3	FK032043	●
35	46.8	40	5	8	3	FK035046	●
40	51.8	45	5	8	3	FK040051	●
45	56.8	50	5	8	3	FK045056	●
*50	61.8	55	5	8	3	FK050061	●
55	68.6	60	6	9	3.5	FK055068	●
56	69.6	61	6	9	3.5	FK056069	●
60	73.8	65	6	9	3.5	FK060073	●
*63	76.6	68	6	9	3.5	FK063076	●
70	83.6	75	6	9	3.5	FK070083	●
75	88.6	80	6	9	3.5	FK075088	●
*80	93.6	85	6	9	3.5	FK080093	●
85	98.6	90	6	9	3.5	FK085098	●
90	103.6	95	6	9	3.5	FK090103	●
*95	108.6	100	6	9	3.5	FK095108	●
100	113.6	105	6	9	3.5	FK100113	●
105	120.4	111	7	11	4	FK105120	●
110	125.4	116	7	11	4	FK110125	●
*120	135.4	126	7	11	4	FK120135	●
*125	140.4	131	7	11	4	FK125140	●
130	145.4	136	7	11	4	FK130145	●
140	159.4	146	7	11	4	FK140159	●
*150	169.4	156	7	11	4	FK150169	●
160	179.4	166	7	11	4	FK160179	●
180	199.4	186	7	11	4	FK180199	●
185	204.4	191	7	11	4	FK185204	●
200	219.4	206	7	11	4	FK200219	●
210	229.4	216	7	11	4	FK210229	●
220	239.4	226	7	11	4	FK220239	○
300	319.4	306	7	11	4	FK300319	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; 3. Part Number with a ” *” means both waterproof and dustproof type seals can be offered. If any special requirements of the materials and sizes, please contact with us.
