FD Wipers (Dust Seals)

Function and Usage
FD wiper (dust seal) is a TUP seal with double lips. During the static and reciprocating movement of the piston rod , the special design of the dust proof lip of the FD wiper helps to prevent dust, sand and other impurities get into the cylinder, and also, avoiding the fuel tank seals, guide rings and other sealing elements to be broken., prolong the service life of the seal. The sealing lip which be directed at the media effects the sealing under lower pressure, and also, reduce the oil slick. Using together with the GS Type ladder seal will makes the sealing function more perfect.

Advantage
--Good effect of dust scarping
--Wear resistant and long life
--Can keep the rest of oil slick
--Standard components for standard mounting grooves

Material
Standard usage
Material: polyurethane  Our Material Code: P903

Technical Data
The Standard FD Wiper is suitable for the axial control rod, plunger, and piston rod of the hydraulic and pneumatic cylinders.
Reciprocating speed：≤1m/s
Working Temperature：-30℃ to +110℃
Working Medium: Hydraulic oil, emulsion, water
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation

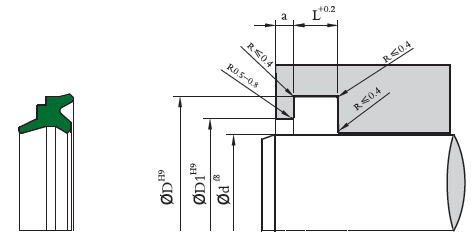

Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. To easily remove the dirt, It is also better for the wiper exposed from the shell body.

Example of the Order Part No. :
FD Wiper
Series No.: FD    Piston Rod Diameter: d=100mm
Part Number: FD100108P903
FD: Series Number
100: Piston Rod Diameter
108: Groove Diameter
P903: Material Code

FD Wipers (Dust Seals)
d	D	D1	L	a	Part No.	Remarks
10	18	13.5	6	3	FD010018	○
12	20	15.5	6	3	FD012020	○
14	22	17.5	6	3	FD014022	●
15	23	18.5	6	3	FD015023	○
16	24	19.5	6	3	FD016024	○
18	26	21.5	6	3	FD018026	●
20	28	23.5	6	3	FD020028	●
22	30	25.5	6	3	FD022030	●
25	33	28.5	6	3	FD025033	●
28	36	31.5	6	3	FD028036	●
30	38	33.5	6	3	FD030038	●
32	40	35.5	6	3	FD032040	●
35	43	38.5	6	3	FD035043	●
36	44	39.5	6	3	FD036044	●
40	48	43.5	6	3	FD040048	●
42	50	45.5	6	3	FD042050	○
45	53	48.5	6	3	FD045053	●
50	58	53.5	6	3	FD050058	●
55	63	58.5	6	3	FD055063	●
56	64	59.5	6	3	FD056064	●
60	68	63.5	6	3	FD060068	●
63	71	66.5	6	3	FD063071	●
65	73	68.5	6	3	FD065073	●
70	78	73.5	6	3	FD070078	●
75	83	78.5	6	3	FD075083	●
80	88	83.5	6	3	FD080088	●
85	93	88.5	6	3	FD085093	●
90	98	93.5	6	3	FD090098	●
95	103	98.5	6	3	FD095103	○
100	108	103.5	6	3	FD100108	●
105	117	110	8.2	3	FD105117	●
110	122	115	8.2	3	FD110122	●
115	127	120	8.2	3	FD115127	○
120	132	125	8.2	3	FD120132	●
*125	137	130	8.2	3	FD125137	●
*130	142	135	8.2	3	FD130142	●
135	147	140	8.2	3	FD135147	○
140	152	145	8.2	3	FD140152	●
*150	162	155	8.2	3	FD150162	●
*160	172	165	8.2	3	FD160172	●
170	182	175	8.2	3	FD170182	●
*180	192	185	8.2	3	FD180192	●
190	202	195	8.2	3	FD190202	●
200	212	205	8.2	3	FD200212	●
210	225	217	9.5	3	FD210225	○
220	235	227	9.5	3	FD220235	●
230	245	237	9.5	3	FD230245	○
240	255	247	9.5	3	FD240255	○
250	265	257	9.5	3	FD250265	○
260	275	267	9.5	3	FD260275	○
265	280	272	9.5	3	FD265280	●
275	290	282	9.5	3	FD275290	○
280	295	287	9.5	3	FD280295	●
290	305	297	9.5	3	FD290305	○
300	315	307	9.5	3	FD300315	○
310	325	317	9.5	3	FD310325	○
320	335	327	9.5	3	FD320335	○
350	365	357	9.5	3	FD350365	○
360	375	367	9.5	3	FD360375	○
370	385	377	9.5	3	FD370385	○
400	415	407	9.5	3	FD400415	○
440	455	447	9.5	3	FD440455	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; 3. Part Number with a ” *” means both waterproof and dustproof type seals can be offered. If any special requirements of the materials and sizes, please contact with us.
