FN Wipers (Dust Seals)

Function and Usage
FN wiper (dust seal) is a TUP seal with double lips. During the static and reciprocating movement of the piston rod , the special design of the dust proof lip of the FN wiper helps to prevent dust, sand and other impurities get into the cylinder, and also, avoiding the fuel tank seals, guide rings and other sealing elements to be broken., prolong the service life of the seal. The sealing lip which be directed at the media effects the sealing under lower pressure, and also, reduce the oil slick. Using together with the GS Type ladder seal will makes the sealing function more perfect.

Advantage
--Good effect of dust scarping
--Wear resistant and long life
--Can keep the rest of oil slick
--Standard components for standard mounting grooves

Material
Standard usage
Material: polyurethane  Our Material Code: P903

Technical Data
The Standard FN Wiper is suitable for the axial control rod, plunger, and piston rod of the hydraulic and pneumatic cylinders.
Reciprocating speed：≤1m/s
Working Temperature：-30℃ to +110℃
Working Medium: Hydraulic oil, emulsion, water
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation

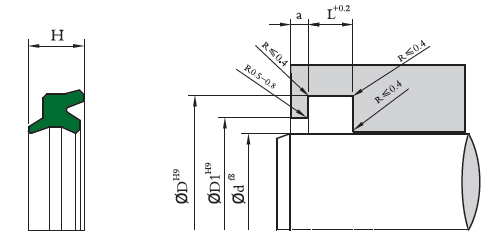

Groove: Closed
In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools. To easily remove the dirt, It is also better for the wiper exposed from the shell body.

Example of the Order Part No. :
FN Wiper
Series No.: FN    Piston Rod Diameter: d=100mm
Part Number: FN100110P903
FN: Series Number
100: Piston Rod Diameter
110: Groove Diameter
P903: Material Code

FN Wipers (Dust Seals)
d	D	D1	L	H	a	Part No.	Remarks
16	24	20.3	5	6	2	FN016024	●
18	26	22.3	5	6	2	FN018026	●
20	28	24.3	5	6	2	FN020028	●
22	30	26.3	5	6	2	FN022030	●
25	33	29.3	5	6	2	FN025033	●
28	36	32.3	5	6	2	FN028036	●
30	38	34	6	6.5	2	FN030038	●
32	40	36	6	6.5	2	FN032040	●
35	43	39	6	6.5	2	FN035043	●
36	44	40	6	6.5	2	FN036044	●
40	48	44	6	6.5	2	FN040048	●
45	53	49	6	6.5	2	FN045053	●
*50	58	54	6	6.5	2	FN050058	●
53	61	57	6	6.5	2	FN053061	○
55	63	59	6	6.5	2	FN055063	●
*56	64	60	6	6.5	2	FN056064	●
60	68	64	6	6.5	2	FN060068	●
63	71	67	6	6.5	2	FN063071	●
*65	73	69	6	6.5	2	FN065073	●
67	75	71	6	6.5	2	FN067075	○
70	80	75	7	8	3	FN070080	●
75	85	80	7	8	3	FN075085	●
80	90	85	7	8	3	FN080090	●
85	95	90	7	8	3	FN085095	●
90	100	95	7	8	3	FN090100	●
95	105	100	7	8	3	FN095105	○
*100	110	105	7	8	3	FN100110	●
105	115	110	7	8	3	FN105115	●
106	116	111	7	8	3	FN106116	○
110	120	115	7	8	3	FN110120	●
112	122	117	7	8	3	FN112122	○
115	125	120	7	8	3	FN115125	○
118	128	123	7	8	3	FN118128	○
120	130	125	7	8	3	FN120130	●
125	138	132	8	9.5	3	FN125138	●
130	143	137	8	9.5	3	FN130143	●
132	145	139	8	9.5	3	FN132145	○
140	153	147	8	9.5	3	FN140153	●
145	158	152	8	9.5	3	FN145158	○
150	163	157	8	9.5	3	FN150163	●
*160	173	167	8	9.5	3	FN160173	●
165	178	172	8	9.5	3	FN165178	○
170	185	178	12	14	5	FN170185	●
175	188	182	8	9.5	3	FN175188	○
*180	193	187	8	9.5	3	FN180193	●
200	213	207	8	9.5	3	FN200213	●
205	218	212	8	9.5	3	FN205218	○
210	223	217	8	9.5	3	FN210223	○
220	233	227	8	9.5	3	FN220233	○
240	256	248	11	13	4	FN240256	○
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; 3. Part Number with a ” *” means both waterproof and dustproof type seals can be offered. If any special requirements of the materials and sizes, please contact with us.
