FS Wipers (Dust Seals)

Function and Usage
FS wiper (dust seal) is a combination seal with double sealing lips, which are combined by a filled PTFE slip ring and an o ring. The dust lip scarping the dirt to ensure the piston rod is clean when reverse running. The sealing lip which be directed at the media effects the sealing, and also, reduce the oil slick. With low friction, wear-resisting filled PTFE slip ring, the FS wiper can be used in a various application, especially for poor working condition, such as high speed running and high temperature.

Advantage
--Minimal start and movement friction, no crawling
--Wear resistant and long life
--Widely used in application with different media, high temperature resistance
--Good effect of dust scarping

Material
Standard usage
Slip Ring Material: Filled PTFE  Our Material Code: T605
O Ring Material: Nitrile Rubber (NBR)  Our Material Code: N800
Combination Code: T605N

If the working condition is under high temperature or chemical resistant medium, we suggest to use FKM (Fluoro Rubber) O Ring, Our Material Code: F800, Combination Code: T605F.

If the working condition is under low temperature, we suggest to use low temperature resistant rubber, Our Material Code: NV705, Combination Code: T605NV.

Technical Data
The Standard FS Wiper is suitable for the axial control rod, plunger, and piston rod of the hydraulic cylinders.
Speed：≤5m/s
Working Temperature：-35℃ to +200℃ (Refer to the O Ring material)
Working Medium: Hydraulic oil, emulsion, water
Tips: Limit value of the above data, can not be used at the same time. The maximum working pressure depends on the type of material, the pressure, the temperature, the gap, and etc.. In actual usage, due to the mutual influence of working parameters, the maximum value setting is lower.

Installation
Groove: Closed
When installing need to avoid the O Ring to be twisted. In order to avoid the damage of the seals, during the installation, the seals should be leave away with the shape edge of the parts and tools.

Example of the Order Part No. :
FS Wiper
Series No.: FS    Piston Rod Diameter: d=100mm
Part Number: FS100108T605N
FS: Series Number
100: Piston Rod Diameter
108: Groove Diameter
T605N: Material Code

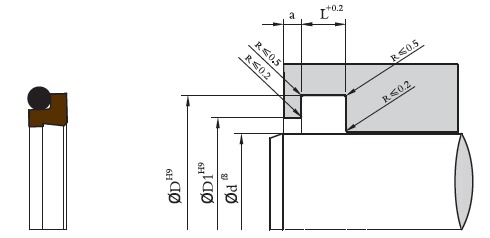

FS Wipers (Dust Seals)
d	D	D1	L	H	a	Part No.	Remarks
12	18.8	13.5	5	3	2.65	FS012018T605N	●
14	20.8	15.5	5	3	2.65	FS014020T605N	●
15	21.8	16.5	5	3	2.65	FS015021T605N	●
16	22.8	17.5	5	3	2.65	FS016022T605N	●
18	24.8	19.5	5	3	2.65	FS018024T605N	●
20	26.8	21.5	5	3	2.65	FS020026T605N	●
22	28.8	23.5	5	3	2.65	FS022028T605N	●
24	30.8	25.5	5	3	2.65	FS024030T605N	●
25	31.8	26.5	5	3	2.65	FS025031T605N	●
26	32.8	26.5	5	3	2.65	FS026032T605N	●
28	34.8	29.5	5	3	2.65	FS028034T605N	●
30	36.8	31.5	5	3	2.65	FS030036T605N	●
32	38.8	33.5	5	3	2.65	FS032038T605N	●
35	41.8	36.5	5	3	2.65	FS035041T605N	●
37	43.8	38.5	5	3	2.65	FS037043T605N	●
38	44.8	39.5	5	3	2.65	FS038044T605N	●
40	46.8	41.5	5	3	2.65	FS040046T605N	●
42	48.8	43.5	5	3	2.65	FS042048T605N	●
45	51.8	46.5	5	3	2.65	FS045051T605N	●
48	54.8	49.5	5	3	2.65	FS048054T605N	●
50	56.8	51.5	5	3	2.65	FS050056T605N	●
52	58.8	53.5	5	3	2.65	FS052058T605N	●
55	61.8	56.5	5	3	2.65	FS055061T605N	●
58	64.8	59.5	5	3	2.65	FS058064T605N	●
60	66.8	61.5	5	3	2.65	FS060066T605N	●
63	69.8	64.5	5	3	2.65	FS063069T605N	●
65	73.8	66.5	6	3	3.55	FS065073T605N	●
70	78.8	71.5	6	3	3.55	FS070078T605N	●
75	83.8	76.5	6	3	3.55	FS075083T605N	●
80	88.8	81.5	6	3	3.55	FS080088T605N	●
85	93.8	86.5	6	3	3.55	FS085093T605N	●
90	98.8	91.5	6	3	3.55	FS090098T605N	●
95	103.8	96.5	6	3	3.55	FS095103T605N	●
100	108.8	101.5	6	3	3.55	FS100108T605N	●
105	113.8	106.5	6	3	3.55	FS105113T605N	●
110	118.8	111.5	6	3	3.55	FS110118T605N	●
115	123.8	116.5	6	3	3.55	FS115123T605N	●
120	128.8	121.5	6	3	3.55	FS120128T605N	●
125	133.8	126.5	6	3	3.55	FS125133T605N	●
130	138.8	131.5	6	3	3.55	FS130138T605N	●
135	143.8	136.5	6	3	3.55	FS135143T605N	●
140	148.8	141.5	6	3	3.55	FS140148T605N	●
150	158.8	151.5	6	3	3.55	FS150158T605N	●
155	163.8	156.5	6	3	3.55	FS155163T605N	●
160	168.8	161.5	6	3	3.55	FS160168T605N	●
170	178.8	171.5	6	3	3.55	FS170178T605N	●
175	183.8	176.5	6	3	3.55	FS175183T605N	●
180	188.8	181.5	6	3	3.55	FS180188T605N	●
185	193.8	186.5	6	3	3.55	FS185193T605N	●
190	198.8	191.5	6	3	3.55	FS190198T605N	●
195	203.8	196.5	6	3	3.55	FS195203T605N	●
200	208.8	201.5	6	3	3.55	FS200208T605N	●
210	218.8	211.5	6	3	3.55	FS210218T605N	●
220	228.8	221.5	6	3	3.55	FS220228T605N	●
225	233.8	226.5	6	3	3.55	FS225233T605N	●
230	238.8	231.5	6	3	3.55	FS230238T605N	●
240	248.8	241.5	6	3	3.55	FS240248T605N	●
250	258.8	251.5	6	3	3.55	FS250258T605N	●
260	272.2	262	8.4	3	5.3	FS260272T605N	●
270	282.2	272	8.4	3	5.3	FS270282T605N	●
280	292.2	282	8.4	3	5.3	FS280292T605N	●
290	302.2	292	8.4	3	5.3	FS290302T605N	●
300	312.2	302	8.4	3	5.3	FS300312T605N	●
310	322.2	312	8.4	3	5.3	FS310322T605N	●
320	332.2	322	8.4	3	5.3	FS320332T605N	●
330	342.2	332	8.4	3	5.3	FS330342T605N	●
340	352.2	342	8.4	3	5.3	FS340352T605N	●
350	362.2	352	8.4	3	5.3	FS350362T605N	●
360	372.2	362	8.4	3	5.3	FS360372T605N	●
370	382.2	372	8.4	3	5.3	FS370382T605N	●
380	392.2	382	8.4	3	5.3	FS380392T605N	●
390	402.2	392	8.4	3	5.3	FS390402T605N	●
400	412.2	402	8.4	3	5.3	FS400412T605N	●
410	422.2	412	8.4	3	5.3	FS410422T605N	●
420	432.2	422	8.4	3	5.3	FS420432T605N	●
430	446	432	11	4	7	FS430446T605N	●
440	456	442	11	4	7	FS440456T605N	●
450	466	452	11	4	7	FS450566T605N	●
460	476	462	11	4	7	FS460476T605N	●
470	486	472	11	4	7	FS470486T605N	●
480	496	482	11	4	7	FS480496T605N	●
490	506	492	11	4	7	FS490506T605N	●
500	516	502.5	11	4	7	FS500516T605N	●
600	616	602.5	11	4	7	FS600616T605N	●
630	646	632.5	11	4	7	FS630646T605N	●
680	700	682.5	14	5	8.6	FS680700T605N	●
700	720	702.5	14	5	8.6	FS700720T605N	●
730	750	732.5	14	5	8.6	FS730750T605N	●
Notice: 1. “●” means the seal has existing mould; 2. “○” means no existing mould, but can provide the turning type seals; If any special requirements of the materials and sizes, please contact with us.
